Name: HBL-EX high bay led light External microwave mode tool-free installation ufo bay lighting warehouse
Brand: SINCORE Lighting (ShenZhen) Co.,Ltd.
SKU: HBLEX
Availability: InStock
Rating: 5 (1 reviews)

Home

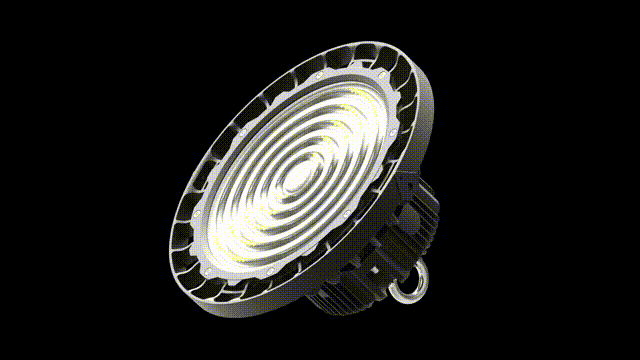

HBL-EX high bay led light External microwave mode tool-free installation ufo bay lighting warehouse and workshop lights

Description

100W / 150W / 200W Energy saving high bay led light quick installation with American standard junction box and meanwell power

3 Options of luminous efficiency: 140LM/W(Ra80), 175LM/W (Ra80), 190LM/W (Ra70)

Beam Angle for choose: 60°/ 90°/120°

Wide input voltage meets different markets: 90‐305VAC

Operating Temperature Range: ‐40～50℃ (‐40～122℉)

LED Lifespan: 50000H

IP65 Waterproof Rating

Controller model for choose: Single Microwave constant illumination；Group Microwave constant illumination+RF(868MHz)

Installation mode options: Hook/Bracket Mount

DIY follow up your needs: LED chips, Heat Sink and Driver

SCP/OVP/OTP protection driver

Controller outside for option

**HBL-Ex TECHNICAL SPECIFICATIONS:**
Power	100W (HBL-Ex S)	150W (HBL-Ex M)	200W (HBL-Ex L)
Input Voltage	90~305VAC
PF	>0.95VAC
Dimming (Optiona I)	3 in 1 dimming (PWM,1-10V,Resistor) or Microwave sensor 3 in 1 dimming (PWM,1-10V,Resisfor) supports turn-off or Microwave sensor
12VDC Dimming	12VDC±10%，Max.0.6W，Max.50mA Turn-off driver of 12VDC±10%，Max.2.4W，Max.200mA (Dimming: outside controller or inside microwave controller for optional, only one can use 12V）
High Ra80,Luminous Flux Efficiency	17500LM \| 175LM/W±10%	26250LM \| 175LM/W±10%	35000LM \| 175LM/W±10%
High Ra70,Luminous Flux Efficiency	19000LM \| 190LM/W±10%	28500LM \| 190LM/W±10%	38000LM \| 190LM/W±10%
CCT	4000K / 5000K / 5700K
Beam Angle	60° 90° 120°
Operation Temp & Humidity	-40～50℃，20～95%RH No condensation
Storage Temp & Humidity	-40～85℃，10～95%RH No condensation
Input Current	0.45A@220VAC	0.68A@220VAC	0.91A@220VAC
Life Span	50000Hours
Surge	6KV / 10KV
IP/ IK Class	IP65 / IK08
Cer tificate	ETL, CB，CE, PSE, SAA, ROHS2.0
Lamp Body Color	Housing：Die-casting Aluminum Color：Black (RAL9005) Lens：PC
Installation mode	Hook /Bracket Mount (reference the Installation Manual)
Product Warranty	5years

The Details About HBL Grow Light

Stable structure and solid materials

Stable structure, good heat dissipation, the whole lamp is made of high-quality materials, with good heat dissipation performance, and can achieve IK08 and IP65 waterproofing
Excellent light effect lens

Good light effect lens, high light transmittance Lens with light angle can be optional
Convinient connection mode

Any vertical access or horizontal access, compatible with G3/4 and G1/2 standard connector.

View HBL-Ex Product Specifications

Features & Benefits about HBL-Ex

Convinient connection mode

Any vertical access or horizontal access, compatible with G3/4 and G1/2 standard connector.

G1/2 connector can support 5-core wires

G1/2 connector can support 5-core wires which integrated by input wires and dim wires,to reduce wire displaying cost and maintain nice wire network.

Free-tool opening electrical box

Free-tool opening electrical box, convenient for electricians to handle and install.

Optional input voltage

Optional input voltage of 100-277VAC and 200-480VAC. Due to North American standard waterproof connector, the two input voltages can be switched easily, which reduce the stock cost for customers.

I want the price now

External Microwave

HBL-Ex series is a new design concept of LED high bay lights, with patent designed and perfect of safety, energysaving, reliable and intelligent control. The systematic combination design of LED chips & heating makes the products have the competitive cost, long useful life and and low maintenance. Lightweight design for easy installation and application; Excellent heat dissipation design, Self‐cleaning and dustproof design to extend more application places.

General Model

The industry's first water-wave circular lens (patented design).its optical loss is only 3% . Circular lens design also provides great convenience to customized projects .More than 200,000pcs are sold worldwide every year, more and more customers are benefiting from this high performance and high reliability product.

More information about us

Intelligent and Efficient LED High Bay Light

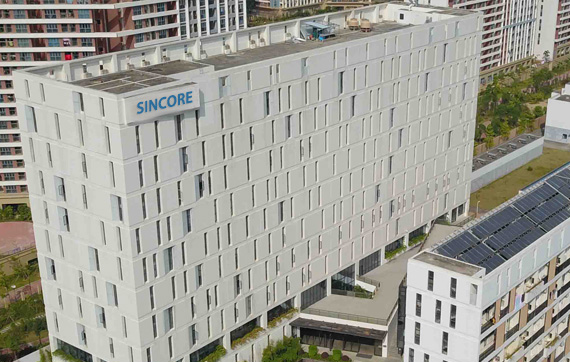

The production capacity of Source Factory

We have 8,000 square meters of workshops and our own production equipment, and can customize high bay lights for your special needs according to your scene needs. Whether it is a high temperature indoor environment, a large warehouse, or other special lighting environment needs, we can meet your needs.

World-renowned accessory partner

Performance is in the details. Every detail of Sincore LEDs is designed for maximum performance. Our HBL-Ex series high bay lights are made from branded components from all over the world, including Bridgelux chips, Meanwell drivers. We have more than 50 patents. All our efforts are only for our customers to obtain high bay lights with longer life and better lighting effects.
