Name: FHBL-A Round Led High Bay Lights 150W For Sale Warehouse Lighting 200W Fixture UFO Manufacturer
Brand: SINCORE Lighting (ShenZhen) Co.,Ltd.
SKU: FHBL-A 100W 150W 200W
Availability: InStock
Rating: 5 (1 reviews)

Home

FHBL-A Round Led High Bay Lights 150W For Sale Warehouse Lighting 200W Fixture UFO Manufacturer

Description

100W / 150W / 200W Energy saving high bay led light quick installation with American standard junction box and meanwell power

3 Options of luminous efficiency: 140LM/W(Ra80), 175LM/W (Ra80), 190LM/W (Ra70)

Beam Angle for choose: 60°/ 90°/120°

Wide input voltage meets different markets: 90‐305VAC

Operating Temperature Range: ‐40～50℃ (‐40～122℉)

LED Lifespan: 50000H

IP65 Waterproof Rating

Controller model for choose: Single Microwave constant illumination；Group Microwave constant illumination+RF(868MHz)

Installation mode options: Hook/Bracket Mount

DIY follow up your needs: LED chips, Heat Sink and Driver

SCP/OVP/OTP protection driver

Controller inside or outside for option

**FHBL TECHNICAL SPECIFICATIONS:**
Power	100W	150W	200W
Input Voltage	90~305VAC
PF	>0.95VAC
Input Current	0.45A@220VAC	0.68A@220VAC	0.91A@220VAC
Luminous Flux,Ra80	14000lm	21000lm	28000lm
Luminous Flux,Ra80	17500lm	26250lm	35000lm
Luminous Flux,Ra70	19000lm	28500lm	38000lm
Product Size(mm)	280261194	300300211	330330216
Net weight(Kg)	2	2.7	3
Gross weight(Kg)	2.6	3.3	3.7
Support Dimmer	Yes	Yes	Yes

The Details About FHBL-A High bay lights

Product Modular Design

light source module, power supply, intelligent controller, composed of three parts, can be freely combined, more convenient for maintenance.Small lamp body, full of details, we start from the product, only to provide customers with better products

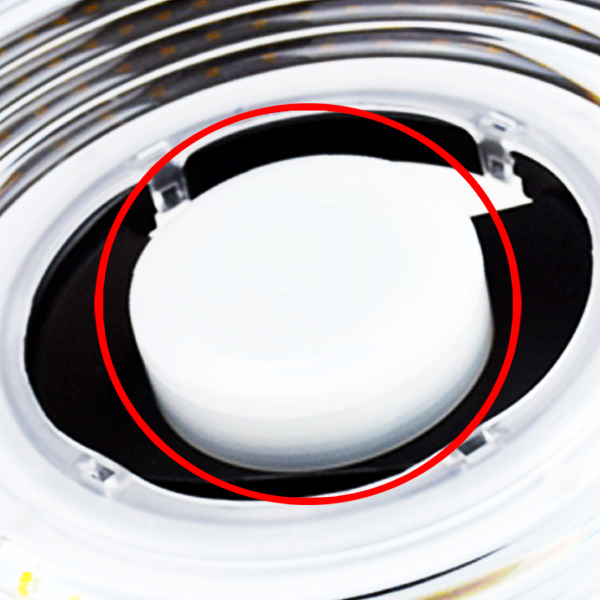

Controller optional

single lamp microwave constant illuminance controller/group microwave constant illuminance controller two standard configurations are optional, and there is an intelligent induction mode
Self-cleaning/waterproof

Excellent radiator design, IP65 dustproof and waterproof, the product self-cleaning will not reduce the service life due to dust accumulation, and the lightweight design is conducive to installation and application.

View FHBL Product Specifications

Features & Benefits about FHBL

3 Options of luminous efficiency

3 Options of luminous efficiency: 140LM/W(Ra80), 175LM/W (Ra80), 190LM/W (Ra70)

Controller model for choose

Single Microwave constant illumination；Group Microwave constant illumination+RF(868MHz)

Motion sensor for options

Motion sensor for options.
Convenient installation.

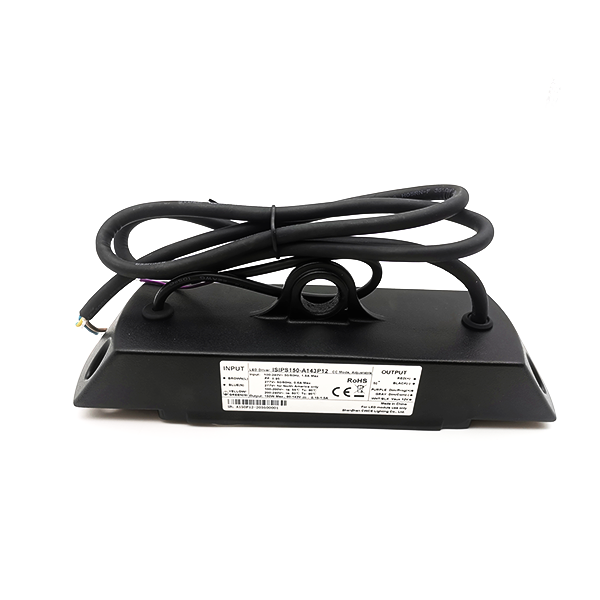

Driver can be DIY

The driver can be DIY
replaced by the final user.

I want the price now

MICROWAVE CONTROL

This product is an intelligent industrial LED lamp controller based on the Internet of Things, designed with microwave radar induction, PWM dimming, programmable lighting cycle setting, scene setting, group group control, dynamic intelligent bright area control, intelligent living body Motion track tracking bright area control, etc. The product adopts wireless joint control technology. The wireless control distance between the controller and the product can reach 15 meters, and the maximum distance between the product and the product is 15 meters.

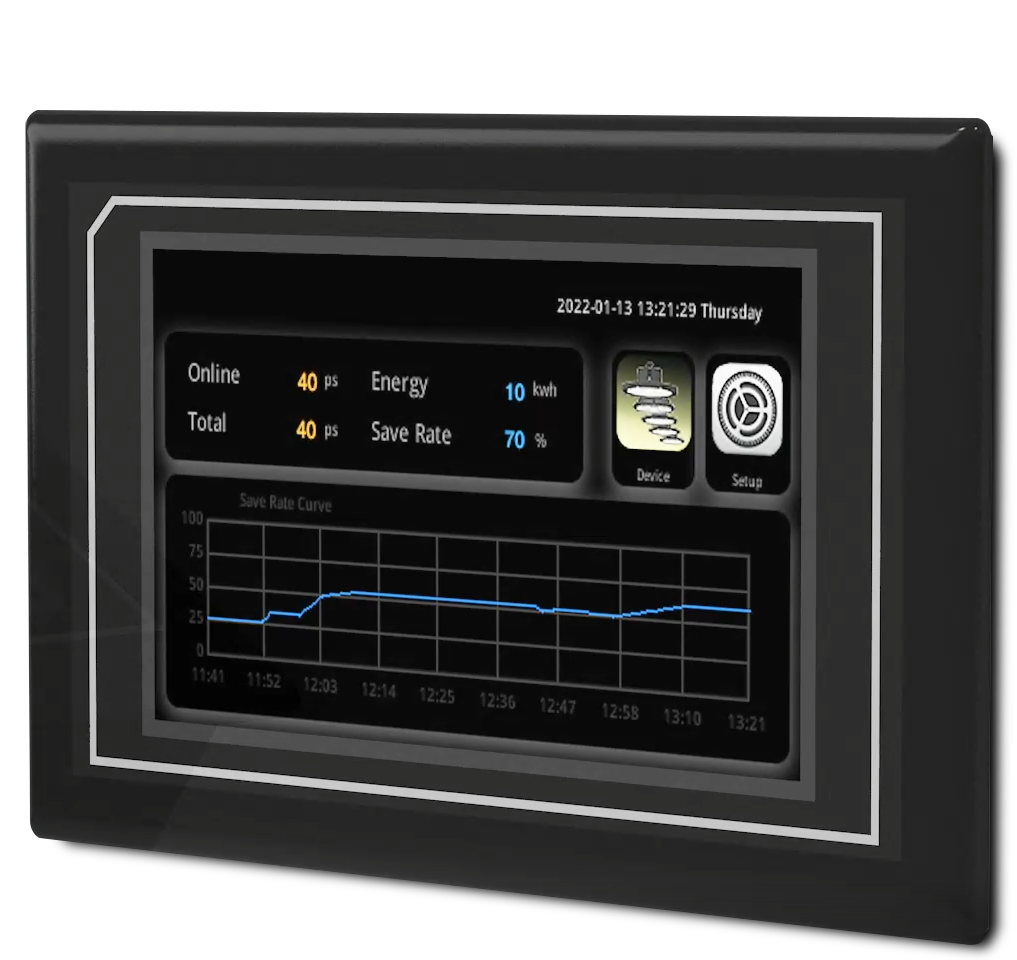

TOUCHPAD CONTROL

Friendly control interface and well-mounted installation features enable users to have a good experience when using the intelligent and energy-saving lights. Users don’t need to spent a lot of energy to learn complicated mobile phone and tablet APP, also don‘t have to keep position of remote controller. The wall control IOL-BOX of intelligent microcomputer can carry out “non-inductive” well, also customized manual operation, which means it can be as convenient as the traditional switch...

More information about us

Innovation-oriented team

FHBL series is a new design concept of LED high bay lights, with patent designed and perfect of safety, energysaving, reliable and intelligent control. The systematic combination design of LED chips & heating makes the products have the competitive cost, long useful life and and low maintenance. Lightweight design for easy installation and application; Excellent heat dissipation design, Self‐cleaning and dustproof design to extend more application places.

The production capacity of Source Factory

We have 8,000 square meters of workshops and our own production equipment, and can customize high bay lights for your special needs according to your scene needs. Whether it is a high temperature indoor environment, a large warehouse, or other special lighting environment needs, we can meet your needs.

World-renowned accessory partner

Performance is in the details. Every detail of Sincore LEDs is designed for maximum performance. Our FHBL series high bay lights are made from branded components from all over the world, including Bridgelux chips, Meanwell drivers. We have more than 50 patents. All our efforts are only for our customers to obtain high bay lights with longer life and better lighting effects.
